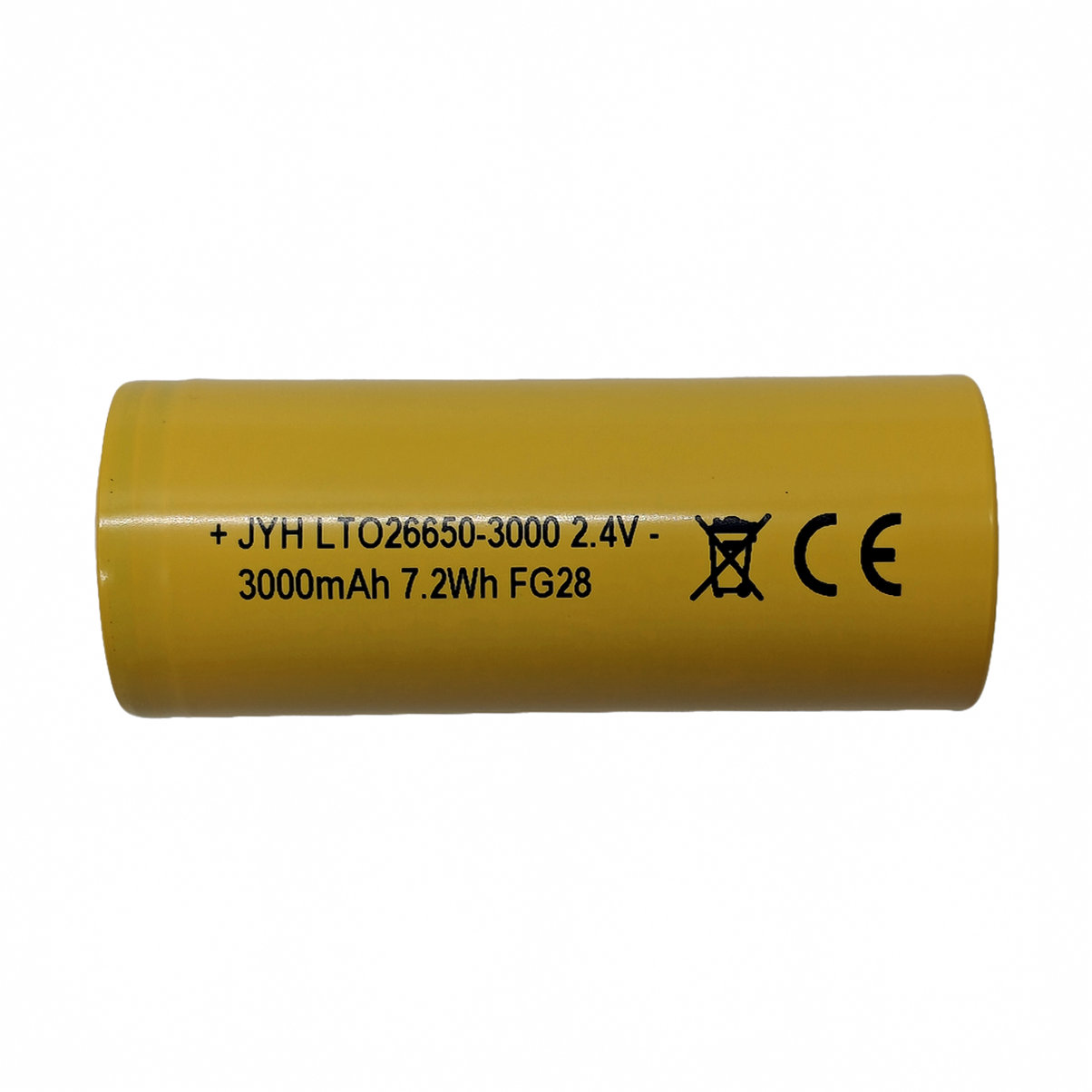

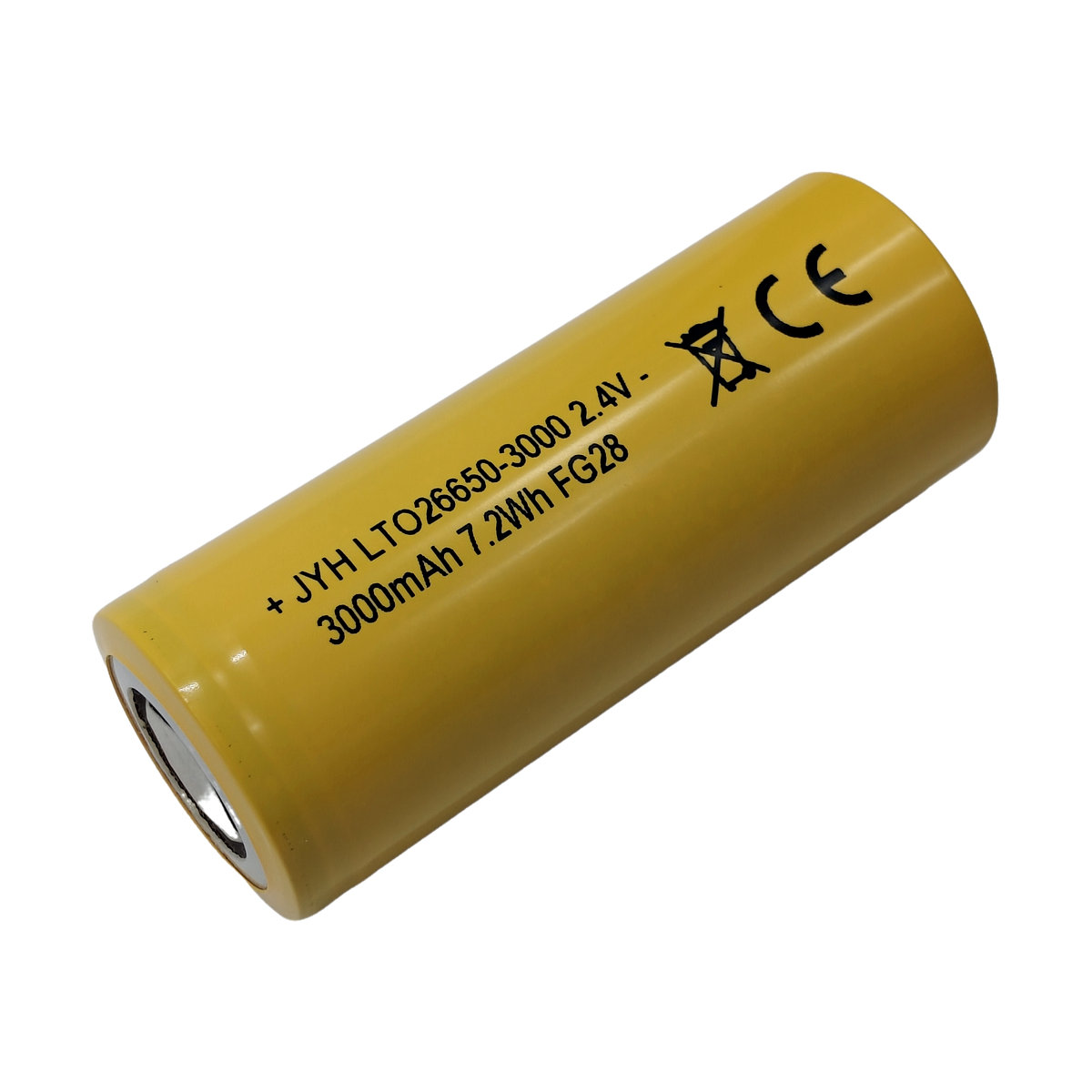

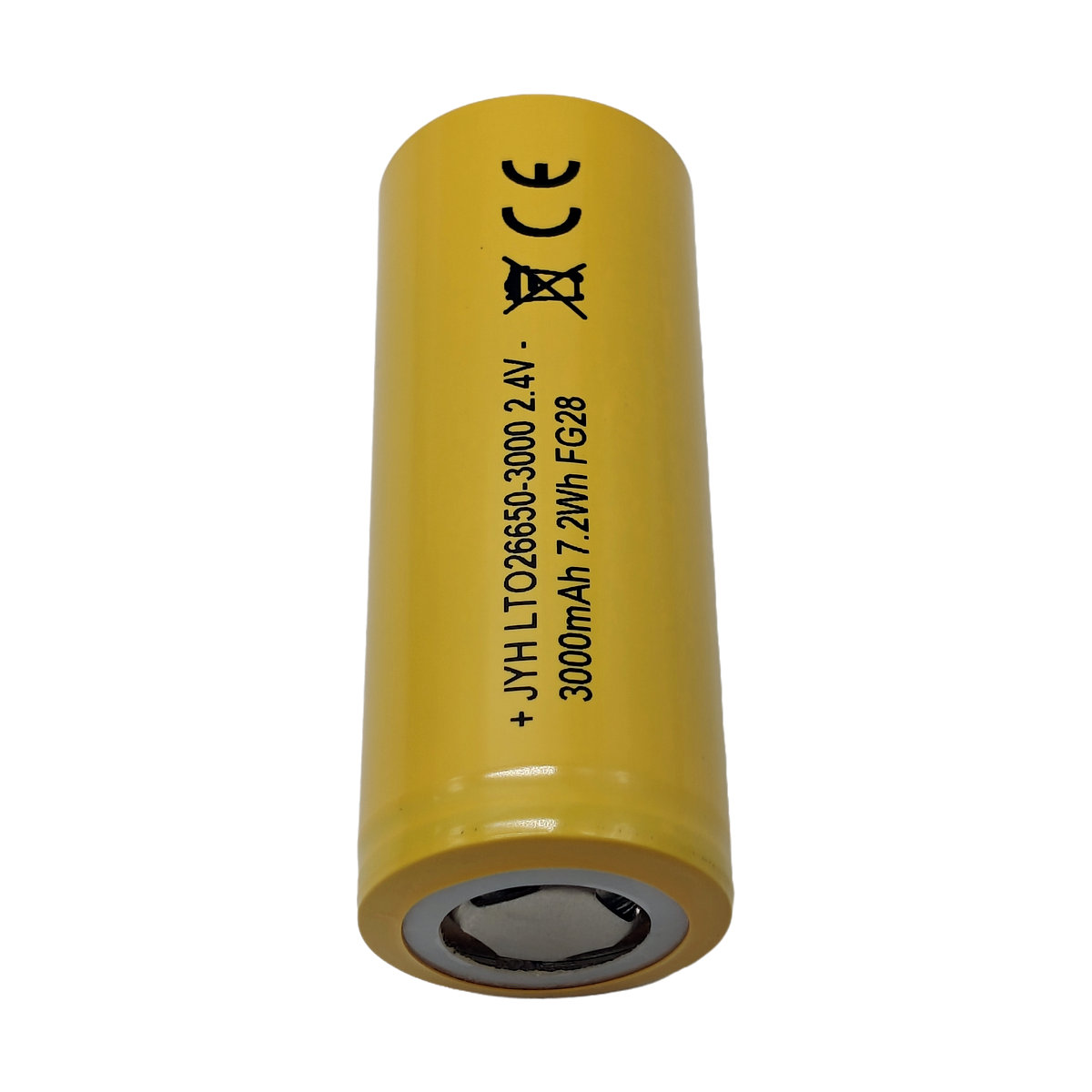

Model 型号 |
LTO26650-3000 |
|
IEC Designation IEC命名 |
ITR27/66 |
|
Nominal Voltage 标称电压 |
2.4V |
|
Nominal Capacity 标称容量 |
3000mAh |
|
Typical Capacity 典型容量 |
3100mAh after standard charge and standard discharge 3100mAh标准充电和放电条件下 |
|
Minimum Capacity 最低容量 |
2900mAh after standard charge and standard discharge 2900mAh标准充电和放电条件下 |
|
Standard Charge 标准充电 |
Constant current at 1500mA charge to 2.7V, then constant voltage at 2.7V charge till current decline to ≤30mA 1500mA恒流充电至2.7V，转恒压2.7V充电至电流≤30mA |
|
Fast Charge 快速充电 |
Constant current at 3000mA charge to 2.7V, then constant voltage at 2.7V charge till current decline to ≤30mA 3000mA恒流充电至2.7V，转恒压2.7V充电至电流≤30mA |
|
Standard Discharge 标准放电 |
600mA to 1.5V 600mA放电至1.5V |
|
Fast Discharge 快速放电 |
3000mA to 1.5V 3000mA放电至1.5V |
|
Maximum Continuous Charge Current 最大连续充电电流 |
600mA (-30℃~-20℃) 1500mA (-20℃~10℃) 3000 mA (10℃~20℃) 12000 mA (20~60℃) |
|
Maximum Continuous Discharge Current 最大连续放电电流 |
12000mA |
|
Operating Temperature 操作温度 |
Charge充电 -30℃ to 60℃ Discharge放电 -40℃ to 60℃ |
|
Storage Temperature 储存温度 |
<1 year小于1年 -10℃ to 25℃ <3 months小于3个月 -10℃ to 35℃ <30days小于30天 -10℃ to 45℃ |
|
Typical Weight 典型重量 |
89g |
