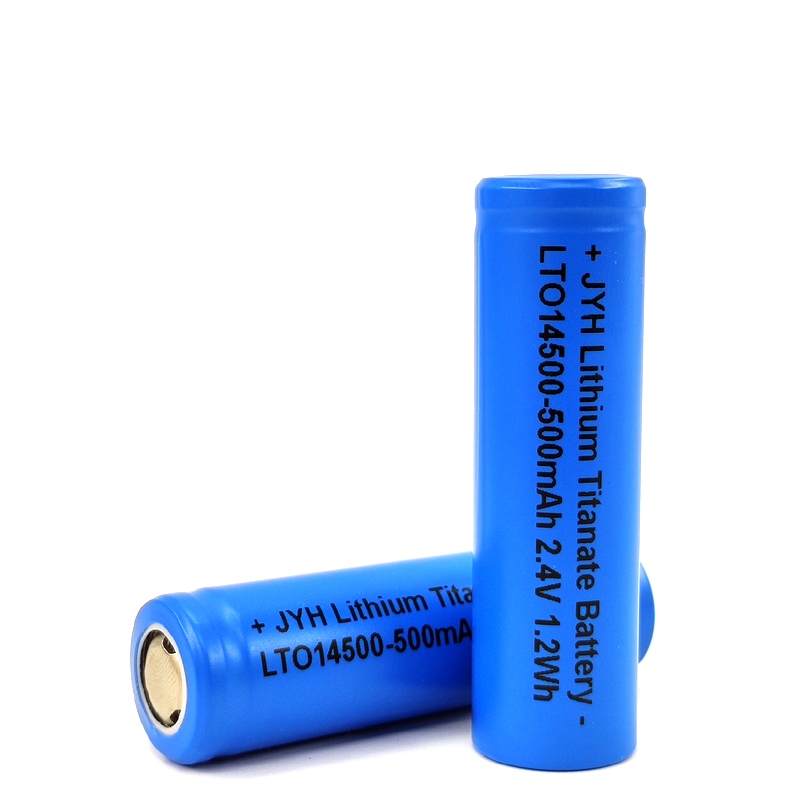

Model 型号 |
LTO14500-500 |
|
Nominal Voltage 标称电压 |
2.4V |
|
Nominal Capacity 标称容量 |
500mAh |
|
Typical Capacity 典型容量 |
525mAh after standard charge and standard discharge 525mAh标准充电和放电条件下 |
|
Minimum Capacity 最低容量 |
480mAh after standard charge and standard discharge 480mAh标准充电和放电条件下 |
|
Standard Charge 标准充电 |
Constant current at 250mA charge to 2.7V, then constant voltage at 2.7V charge till current decline to ≤5mA 250mA恒流充电至2.7V，转恒压2.7V充电至电流≤5mA |
|
Fast Charge 快速充电 |
Constant current at 500mA charge to 2.7V, then constant voltage at 2.7V charge till current decline to ≤5mA 500mA恒流充电至2.7V，转恒压2.7V充电至电流≤5mA |
|
Standard Discharge 标准放电 |
100mA to 1.5V 100mA放电至1.5V |
|
Fast Discharge 快速放电 |
500mA to 1.5V 500mA放电至1.5V |
|
Maximum Continuous Charge Current 最大连续充电电流 |
2000mA |
|
Maximum Continuous Discharge Current 最大连续放电电流 |
2000mA |
|
Operating Temperature 操作温度 |
Charge充电 -30℃ to 45℃ Discharge放电 -30℃ to 60℃ |
|
Storage Temperature 储存温度 |
<1 year小于1年 -10℃ to 25℃ <3 months小于3个月 -10℃ to 35℃ <30days小于30天 -10℃ to 45℃ |
|
Typical Weight 典型重量 |
20g |
